1. This series of machines have the functions of washing and dewatering, automatic and manual switch back and forth.
Arbitrary choice of the wash cycle, the number of cleanings, dehydration time, etc. For a wide range of fabrics. The device uses a variable frequency drive, speed adjustment smooth, flexible, low noise; equipment used back drainage structure to solve the problem of clean laundry;
2. Large-screen computer version control, strong function, flexible and professional. 40 sets of program memory.Manual controller , when the computer controller failure, you can switch to the emergency operating system, manual operation, complete the washing.
3. Inner drum made of high quality stainless steel welded strength, punching sided, double-sided polishing and reduce fabric wear
4. Mechanical equipment used under suspension spring shock structure, low noise, wash and high speed extract excessive smooth, no need the base.
5. Floating Viton sealing, completely isolated from the water, and the pH of the material penetration and protect bearings, improve life
6. Large-diameter, stainless steel deep-style doors fitted clothes, effectively prevent the clamp pull linen, while reducing the labor intensity of the operation; narrow popular in Europe and America, the big door, to ensure reliable sealing of the door.
7. Flushable five positions soap injection system, dual drainage options to configure, save energy, protect the environment, add the washed material is simple and convenient
8. In vitro using the automatic refueling device, ergonomically mechanics, reduce maintenance labor intensity, can delay life.Products are mainly suitable for hotels, restaurants, laundry, washing hospital linen, tablecloths, towels and other linen use
型號Model
XGQ-15F
XGQ-20F
XGQ-25F
XGQ-30F
XGQ-35F
XGQ-50F
XGQ-70F

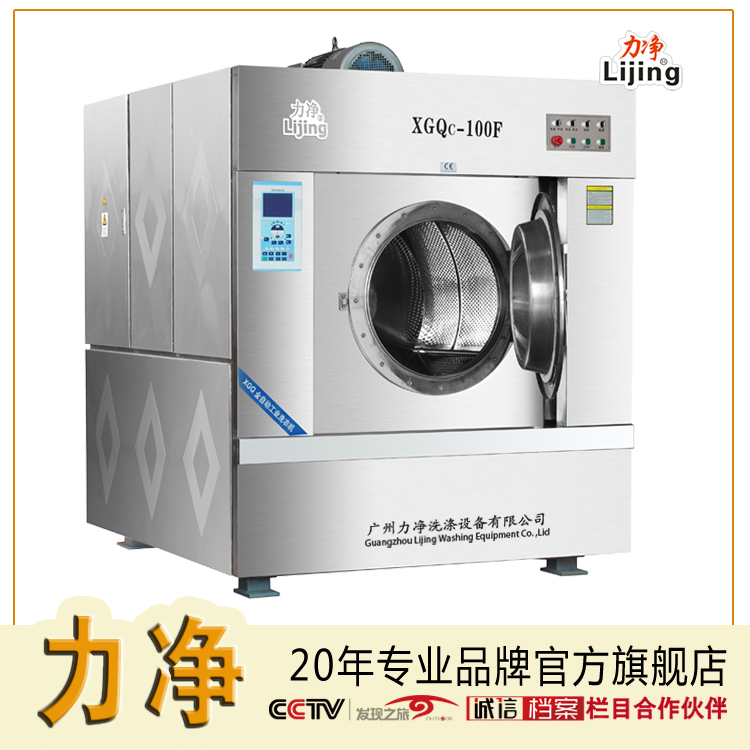

XGQ-100F
洗衣容量（KG）
Washingcapacity
15
20
25
30
35
50
70
100
滾筒尺寸(mm)
drumdimension
Φ700×430
Φ800×450
Φ800×470
Φ900×480
Φ920×5000
Φ1080×630
Φ1050×810
Φ1200×870
滾筒轉速(r/min)
roller speed
45
45
45
45
45
45
45
45
高脫轉速(R.p.m)
high extractspeed
850
830
800
780
780
780
710
700
電機功率(kw)
motor power
2.2
2.2
2.2
4
4
5.5
5.5
7.5
變頻器功率(kw)
frequencypower
2.2
2.2
2.2
5.5
5.5
7.5
7.5
11
蒸汽壓力(Mpa)
steampressure
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
蒸汽耗量
steamconsumption
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
空氣壓力(Mpa)
air pressure
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
尺寸(mm)
Dimension
1050x970x1500
1200x1080x1650
1200x1080x1700
1430x1520x1900
1430x1520x2100
1600x1650x1980
1580x1820x2050
1750x2050x2250
機器重量(kg)
Weight
450
560
625
1550
2100
2650
2950
3600
|
 |
 |
 |
 |
|
|
|
