377 micro porous flatwork ironing machine is a new generation ironing equipment in laundry machinery. It is widely used in the flatwork ironing of different kinds of Linens, bed sheets, mattress covers, tablecloths, towels, blankets etc. fabrics. It is the necessary equipment of different scale hotels, restaurants, hospitals, factories, schools, knitting, washing and dyeing plants.
The microporous ironing machine with foreign advanced technology, excellent technology and strict quality control, exquisite craft manufacturing. It adopt 304 high-quality seamless steel pipe and Ø377 ironing machine rollers. Increase drum micro porous precess, greatly improve work efficiency, save personnel operation. It has small footprint, low noise, low center of gravity, smooth operation, PLC touch-screen design, easy operation.
Feature：
Micro porous flatwork ironing machine adopt dual frequency double motor system, low energy consumption, reversible, beautiful design. The machine uses a gear in terms rotation turn, smooth transmission, low noise, adjustable ironing speed, safe, reliable, energy saving.
This machine adopts imported high-temperature heat treatment ironing belt, cooling function. The machine conveyor adopt soft chain connection, has changed the traditional solder connections, extend the service life.
Vice cylinder adopt cold drawn tubes, 304 stainless steel, combine with stainless steel feed work station.
Using PLC touch-screen computer board design, visual control of the fabric, can better monitor the functioning and ironing machine, reducing security risks.
Equipment using oxygen pump system and microporous technology, quick heat conduction speed. The machine adopts no speed motor. Ironing roller speed range between the 0-30m/min, can make better use of heat energy. After dehydration, the fabrics can feed into the ironing machine directly, the speed can be maintained above 12meters /min.
6.The machines have two models feeding system. No.1:The bedsheets feeding in front side, come out in back side. No. 2: After adjust the roller stick,it can feeding in front side, and come out in the bottom of front side.
| 參數名稱/型號 Specification/ Model | YP-37719 | YP-37726 | YP-37728 | YP-37730 |
|
滾數（個） Roller quantity |
2 | 2 | 2 | 2 |
|
熨平寬度 Ironing width |
1.8 | 2.5 | 2.8 | 3 |
|
熨平速度（m/min) Ironing speed |
0-30 | 0-30 | 0-30 | 0-30 |
|
電機功率 Motor power |
1.5 | 1.5 | 1.5 | 2.2 |
|
風機功率 fan power |
0.37 | 0.37 | 0.75 | 0.75 |
|
額定電壓 rated voltage |
380 | 380 | 380 | 380 |
|
變頻器1功率 Frequency 1 power |
1.5 | 1.5 | 2.2 | 2.2 |
|
變頻器2功率 Frequency 2 power |
0.5 | 0.5 | 0.75 | 0.75 |
|
最高溫度(°C) maximum temperature |
300 | 300 | 300 | 300 |
|
電加熱功率 Electric heating power |
36 | 40 | 44 | 48 |
| 整機重量 | 1300 | 1600 | 2100 | 2500 |
|
外形尺寸 Dimension |
2780×1410×1540 | 3480×1410×1540 | 3680×1410×1540 | 3880×1410×1540 |
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |
Full automatic washer with dryer created
BZ clothes packing machine
Industrial dryer HGQ/HGD/HGR series

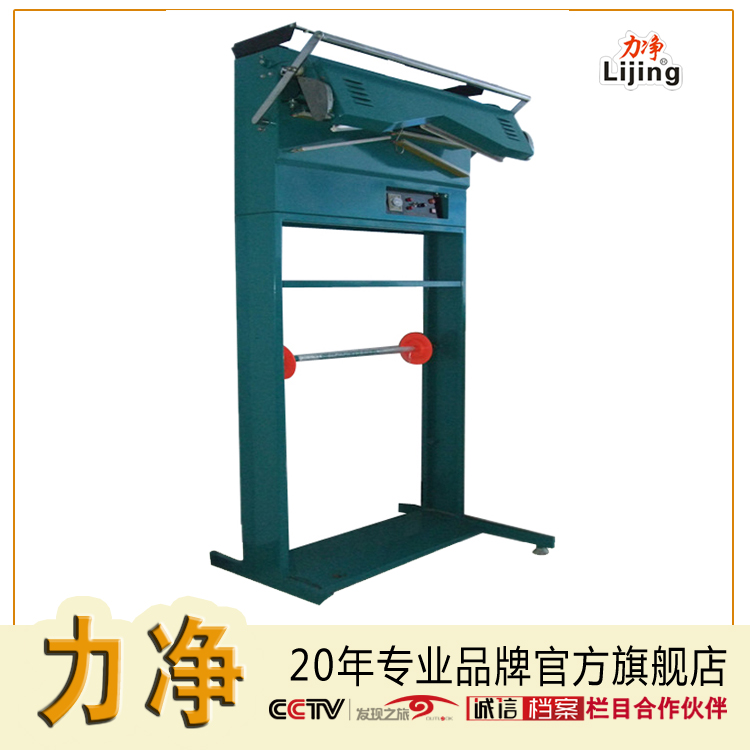

WJTB-125 semi automatic universal press ironer
